RS232 to TTL Serial Interface Module With DB9 Connector

IC Chip: MAX3232
Operating Voltage: 3.3-5.5V
It can be used to program STC MCU, NXP MCU, Renesas MCU, STM32 MCU, N+-2EC MCU
Pre-assembled compact size board
Suitable for use with most microcontrollers
Operates up to 250 kbit/s

SKU USB_TTL5 RS232 DB9 4p SKU SYS x3416 Availability In stock

Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.

Fast shipping Delivery across Egypt

Flexible payment Cash and online options

Quantity confirmation Confirmed after order review

Technical support Help choosing compatible parts

Description

RS232 to TTL Serial Interface Module With DB9 Connector

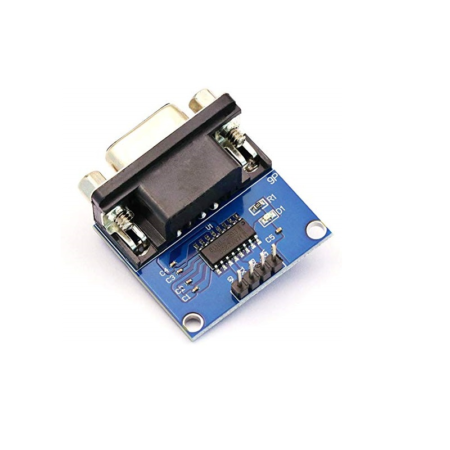

This RS232 to TTL Serial Interface Module is a board with the MAX3232 transceiver integrated circuit (IC). It facilitates serial communication between TTL and RS232 ports by providing the necessary electrical signal conversion.

These boards usually have a DB9 connector soldered at one end, and four header pins for jumper cables at the other end. The jumper cables enable the user to connect the wires to a breadboard or a microcontroller project board, whilst the DB9 connects directly to a COM port of a computer.

The MAX3232 IC, which comes in a 16 pin narrow SO package. It requires between 3.0 V to 5.5 V to operate and has two receivers and two transmitters. It has a maximum guaranteed data rate of 120 kbps, and the circuitry requires four 0.1µF charge-pump support capacitors. It is also compatible with the famous MAX3232 IC pins. These boards connect to systems with a UART hence, they work with ATMEL and PIC microcontrollers.

MAX3232 RS232 Serial Port To TTL Converter Module DB9 Connector 5V RS232 to TTL + Female Serial TTL + serial modules / Brush board. This module can be used to the serial port of the microcontroller module expand DVD, router, hard drive, and other equipment to upgrade.

Note : SP3232zEEN Printed on IC working remains same.

RS232 to TTL Serial Interface Module

Features :

It is widely used in radio modification, phone flash, XBOX360 flash, GPS, vehicle detection, DVD flash, hard disk repair set-top box upgrade.
It can be used to program STC MCU, NXP MCU, Renesas MCU, STM32 MCU, N+-2EC MCU
Pre-assembled compact size board
Suitable for use with most microcontrollers
Operates up to 250 kbit/s

Package Includes :

1 x RS232 to TTL Serial Interface Module

Attachments :

Datasheet

DOWNLOAD

RS232 Pinout

DOWNLOAD

Specification :

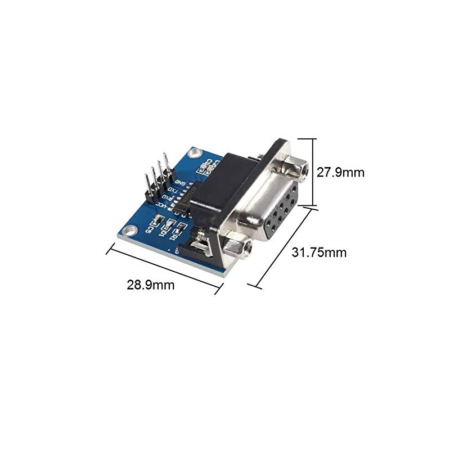

Model Type:	Interface Module
Width (mm):	32
Height (mm):	15
Weight (g):	10
Shipping Weight	0.016 kg
Shipping Dimensions	7 × 5 × 2 cm
