Save -18% Out of stock 12V Relay Module with Automatic Delay Timer

12V Relay Module with Automatic Delay Timer

Original price was: 550.00 EGP.Current price is: 450.00 EGP.

12V Relay Module with Automatic Delay Timer

  1. Operating Voltage: 12VDC
  2. Output Capacity: Can Control the Load within DC 30V 5A or AC 220V 5A
  3. Working Current: 50mA
  4. Color: White
SKU 12V Relay Module with Automatic Delay Timer SKU SYS X8167 Availability Out of stock
Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.
☎ Need help? Call us 0104 453 9059
Add to wishlist
Share
Fast shipping Delivery across Egypt
Flexible payment Cash and online options
Quantity confirmation Confirmed after order review
Technical support Help choosing compatible parts
Tags
12V Relay Module Relay Module Timer Timer Mode Timer Module

Description

This is a 12V Relay Module with Automatic Delay Timer. The module consists of a 12V relay along with a three-digit seven-segment display. The module is based on an N76E003AT20 microcontroller.The module has three buttons one to control the function and others to set the delay time.

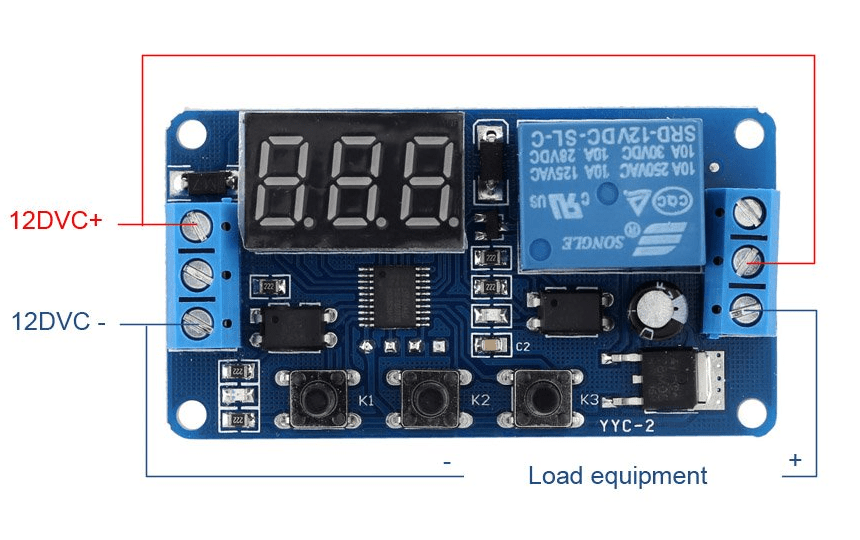

Connection Diagram:

  1.12 V load



12V Relay Module with Automatic Delay Timer 2

Features:

  1. Increase the power supply anti-reverse function.
  2. The use of optoisolated input and output enhanced anti-jamming capability and consumption.
  3. The last setting parameters can be memorized after power off.
  4. A signal terminal voltage signal can be maintained for a long time.
  5. To ensure stability, industrial grade PCB board.

Package Includes:

1 x 12V Relay Module with Automatic Delay Timer

Model:Relay Module
Operating Voltage (VDC):12
Signal voltage4 – 20VDC
Output CapacityCan Control the Load within DC 30V 5A or AC 220V 5A
Static Current20mA
Working Current (mA)50mA
Operating Temperature (°C):-40 to 85
Length (mm):68
Width (mm):40
Height (mm):25
Weight (g):44
Shipping Weight0.047 kg
Shipping Dimensions9 × 10 × 3 cm
