Out of stock BMS 4S 100A li-ion Battery Balance Charging BMS Protection PCB Board-White

BMS 4S 100A li-ion Battery Balance Charging BMS Protection PCB Board-White

265.00 EGP

BMS 4S 100A li-ion Battery Balance Charging BMS Protection PCB Board-White

  1. Charging current: 60A
  2. Balance function: yes
  3. Ampere balance (Current): 50MA
  4. Voltage alance accuracy: 3.355-3.455 V
SKU BMS_4s100A 1Res SKU SYS X6305 Availability Out of stock
Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.
You are already subscribed We will notify you when this product is available again. أنت مشترك بالفعل، وسنرسل لك تنبيهًا عند توافر المنتج.
☎ Need help? Call us 0104 453 9059
Add to wishlist
Share
Fast shipping Delivery across Egypt
Flexible payment Cash and online options
Quantity confirmation Confirmed after order review
Technical support Help choosing compatible parts
Tags
Battery Protection Bms BMS 4S BMS 4S 100A Li-ion

Description

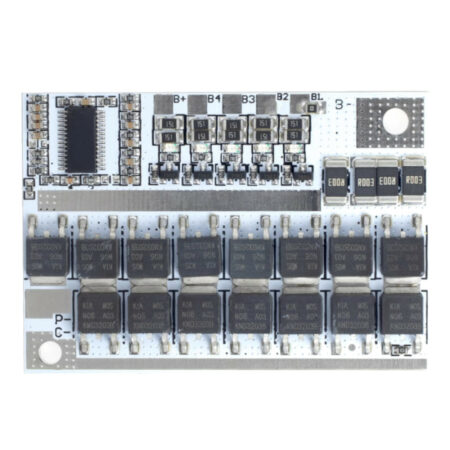

BMS 4S 100A Battery Balance Charging BMS Protection PCB Board-White

This is a White 4S 100A  Lithium Battery Protection Balance Charging BMS Protection PCB Board.

This protection board is 4s in common use lithium battery protection board (you can adjust for how many strings to be used) Specified chip, stable performance, support disconnection protection, over-current protection, over-discharge protection, overcharge protection, with balance, etc. A common use for “same port” and “different port”, the protection board uses 15 high-power of ultra-low resistance MOS tubes (discharge of 8, charging 7), in the same port mode can support the discharge current 60A, charging current 60A; different port mode discharges current 80A, charging current 60A. Can use for LMO. Ternary lithium battery. LCO(3.7V)battery packs etc. battery. LCO(3.7V)battery packs etc.

Features:

  1. Light weight
  2. Best for your li ion battery
  3. Easy to use
  4. Easy to connect
  5. Low power consumption

Package Includes:

1 x White 4S 100A li-ion Lithium Battery Protection PCB Board



Image of BMS connections board.: DOWNLOAD



Single cell battery overcharge protect voltage3.61-3.69 V
Single cell battery overcharge protect recover voltage3.5-3.6V
Overcharge protect delay1.5-2.5S
Overcharge protect Current100A
Over-discharge protect Current100A
Disconnect protectYes
Shortage protectYes
Charging curren60A
Voltage alance accuracy3.355-3.455 V
Shipping Weight0.015 kg
Shipping Dimensions8 × 7 × 1 cm
