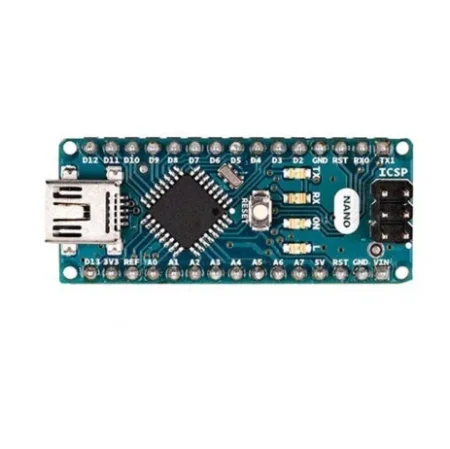

Out of stock Original Arduino Nano Made in ITALY

Original Arduino Nano Made in ITALY

875.00 EGP

Manufacturer: Arduino Officials
Operating Voltage (logic level): 5V
8 analog inputs ports: A0 ~ A7
14 Digital input / output ports: TX, RX, D2 ~ D13
1 pair of TTL level serial transceiver ports RX / TX
Using Atmel Atmega328P-AU MCU
There is a bootloader installed in it
Standard 0.1” spacing DIP (breadboard friendly).
Manual reset switch.

SKU AR_Nano Italy SKU SYS X6028 Availability Out of stock

Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.

Fast shipping Delivery across Egypt

Flexible payment Cash and online options

Quantity confirmation Confirmed after order review

Technical support Help choosing compatible parts

Description

This Arduino Nano is Original Arduino Nano Board. It is a breadboard-friendly board based on the ATmega328P from Arduino officials made in Italy. It has more or less the same functionality of the Arduino Duemilanove but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.

Original Arduino Nano is a surface mount breadboard embedded version with integrated USB. It is the smallest, complete, and breadboard-friendly. It has everything that Diecimila/Duemilanove has (electrically) with more analog input pins and onboard +5V AREF jumper. Physically, it is missing power jack. The Nano is automatically sensing and switch to the higher potential source of power, there is no need for the power select jumper.

Nano’s got the breadboard-ability of the Boarduino and the Mini+USB with a smaller footprint than either, so users have more breadboard space. It’s got a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one top, power and ground on the other). This new version 3.0 comes with ATMEGA328 which offers more programming and data memory space. It is two layers. That makes it easier to hack and more affordable.

You end up paying less with Nano than Mini and USB combined!

Getting Started

You can find in the Getting Started section all the information you need to configure your board, use the Arduino Software (IDE), and start tinker with coding and electronics.

Useful Links:

On the Software on the Arduino Forum
On Projects on the Arduino Forum
On the Product itself through our Customer Support

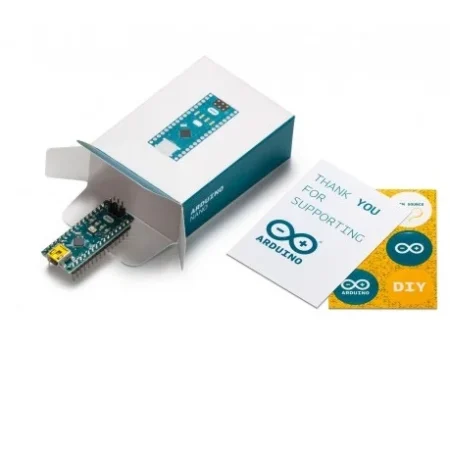

Package Includes:

1 x Original Arduino Nano

Model Type	Nano
Color	Blue
Microcontroller	ATmega328
Operating Voltage (VDC)	5
Input Supply Port	USB Mini
Input Voltage(Recommended)	7-12 V
Power Consumption (Watt)	1
Analog I/O Pins	8
Digital I/O Pins	22 (6 of which are PWM)
PWM Output Pins	6
Architecture	AVR
Clock Speed	16 MHz
Flash Memory	32 KB
EEPROM	1 KB
SRAM	2
Weight (gm)	7
Length (mm)	45
Width (mm)	18
Shipment Weight	0.019 kg
Shipment Dimensions	9 × 6 × 3 cm

SCHEMATIC

DOWNLOAD

EAGLE FILE

DOWNLOAD
