Save -40% PCT-213 0.08-2.5mm 3 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection

PCT-213 0.08-2.5mm 3 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection

Original price was: 10.00 EGP.Current price is: 6.00 EGP.

PCT-213 0.08-2.5mm 3 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection

  1. Model: PCT-213
  2. Rated Voltage: 220V
  3. Rated Impulse Voltage: 4KV
  4. Material of Insulation: Modified Nylon(PA66)
  5. Color: Grey+Orange
  6. Rated Current:32A
  7. Rated power: 7KW
  8. Gauge:28~12AWG
SKU TB_3wago PCT-213 SKU SYS x3234 Availability In stock
Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.

Wholesale Discount

Quantity Discount (%) Price
1 - 99 — 6.00 EGP
100 - 499 8.33 % 5.50 EGP
500 - 999 16.67 % 5.00 EGP
1,000+ 20.83 % 4.75 EGP
تحتاج مساعدة؟ تواصل معنا
☎ Need help? Call us 0104 453 9059
Add to wishlist
Share
Fast shipping Delivery across Egypt
Flexible payment Cash and online options
Quantity confirmation Confirmed after order review
Technical support Help choosing compatible parts
Tags
PCT Wire Connectors PCT-213 Power Connector Rosetta Screw Terminal Terminal Block Wago روزته واجو

Description

PCT-213 0.08-2.5mm 3 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection

This is a PCT-213 0.08-2.5mm 3 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection.PCT Spring Lever Connector PCT-212, 213, 215, 215, 218  and CH-812, 813, 2-4, 2-6, etc. comes with compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 2.5mm2 area or soft wire with 0.08mm to 4.0mm2 area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A, result in a maximum of 7KW Power.

These connectors are available with different optional models, different sizes, and No. pole on which cables are locked as below Click on it to buy according to your requirement.

Features:

  1. High-grade Insulative Nylon Material
  2. Strong Spring Locking Lever
  3. Nickel Plated Metal Point Inside
  4. Good Temperature Resistance
  5. Compact Splicing Connector
  6. 4-Conductor Terminal Block
  7. With Operating Levers
  8. Max. Continuous Service Temperature 85°C

Package Includes:

1 x PCT-213 0.08-2.5mm 3 Pole Wire Connector Terminal Block

ModelPCT-213
Rated Voltage (V)250V/4KV
Rated Current(A)32
Body MaterialModified Nylon (PA66)
Contact MaterialStainless Steel
No. of Contact Points3
Rated Power (W)7 KW
Allowed Wire Size (AWG)28 ~ 12
ColorGrey+Orange
Operating Temperature Range (°C)-20 to 85

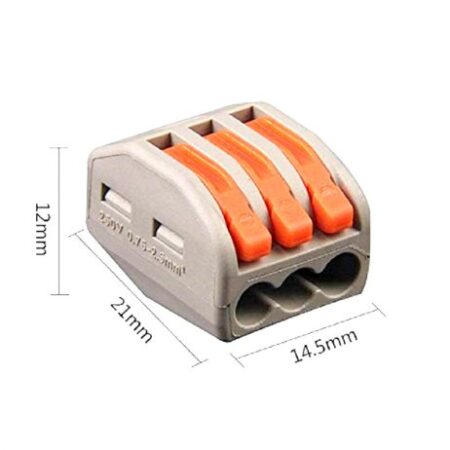

Length (mm)21
Width (mm)17.5
Weight (gm)6
Shipment Weight0.01 kg
Shipment Dimensions4 × 4 × 1 cm
