ULN2803AG 8 Channel NPN Darlington Sink Driver

18.00 EGP

SKU: IC_ULN2803 Categories: ,
Share:

ULN2803?is?a high-voltage and high-current Darlington transistor array and is mainly used as a relay driver with an ability?to handle 8?relays?at a time.
It comes with a collector-emitter voltage around 50 V and input voltage residing at 30 V.

  • Before we move further, we must know what is?Darlington transistor? It is commonly known as?Darlington pair which is nothing but a combination of two?bipolar transistors?featuring a compound?design and is connected?back to back?where current amplified by the first transistor is again amplified by the second one.

This shape delivers a much higher?current gain as compared to each transistor taken separately. It works on the simple amplification principle happening in the regular transistor where a small base is used to make the pair switch for higher switching currents.

  • This?Darlington transistor mainly operates at 5V? and is based on TTL (Transistor-Transistor Logic) and CMOS (Complementary Metal Oxide Semi-Conductor).

The?NPN transistors?forming arrays are useful for both: interfacing between low logic level digital circuitry and achieving the higher current/voltage requirements in a wide range of applications including printer hammers, lamps, relays, consumer and industrial applications.

  • The device shows open?collector outputs and freewheeling clamp diodes that turn out to be very handy for transient suppression.
ULN2803 Pinout

Following figure shows the pinout of ULN2803. It comes with 8 input pins and 8 output pins.

introduction to uln2803, uln2803 features, uln2803 pinout, uln2803 applications

Pin Configuration

Pin number from 1 to 8 is a Channel 1 through 8 Darlington base?input while pin number from 11 to 18 is?Channel 1 through 8 Darlington base output. Similarly, 9 and 10 pins are ground and common cathode node (Vcc) respectively. It is important to note that common emitter is shared by all the channels.

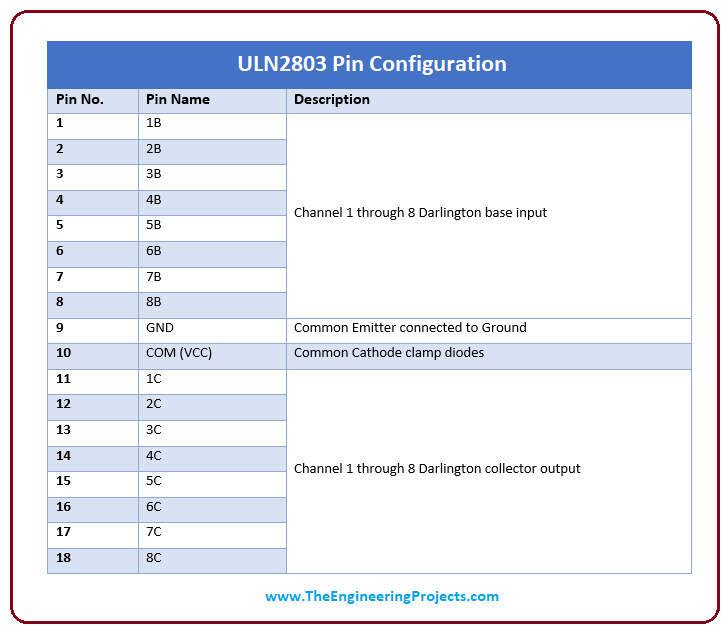

Following table shows the pin configuration of ULN2803.

introduction to uln2803, uln2803 features, uln2803 pinout, uln2803 applications

ULN2803 Logic Diagram

Following figure shows the logic diagram of ULN2803. It is a visual representation and arrangement of how the diodes are connected in the component.

introduction to uln2803, uln2803 features, uln2803 pinout, uln2803 applications

Following figure shows the schematic diagram of each Darlington pair.

introduction to uln2803, uln2803 features, uln2803 pinout, uln2803 applications

You can see how the?resistors?and diodes are connected with each other. And the amplified output of one resistor is further amplified by the second resistor, giving a whopping amount of current gain which is difficult for the individual diode to achieve if incorporated separately.

ULN2803 Absolute Maximum Ratings

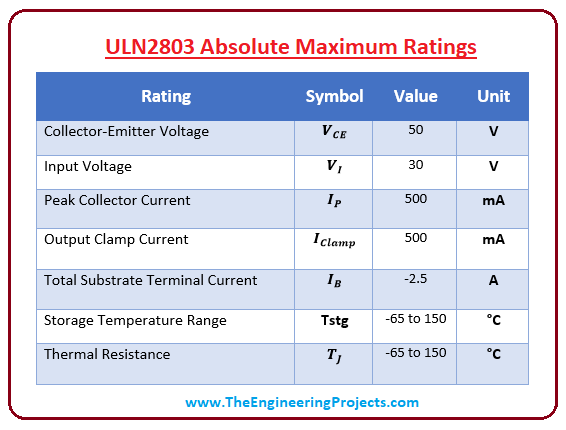

Following figure shows the absolute maximum rating of this component.

introduction to uln2803, uln2803 features, uln2803 pinout, uln2803 applications

These are the stress ratings which if exceed from absolute maximum ratings, can damage the device at large, ultimately affecting the overall nature and performance of the project.

  • Similarly, if these ratings are applied for the maximum period of time above normal operating conditions they can affect the reliability of the device.

Steps and measurements taken in the early stages of your project can save you from the atrocities of spending more in case the electronic circuit gets affected.

  • It is preferred to check these ratings before placing the device in the circuit and make sure these ratings are quite in line and match exactly as defined by the manufacturer.
Applications

ULN2803 comes with a variety of advantages with a common application as a relay driver. Following are some major applications of this Darlington?array.

  • LED display
  • Hammer Drivers
  • Motor driver circuits like?DC Motors?or?Stepper Motors
  • IP Camera
  • Lamp Drivers
  • Stepper Motors
  • Logic Buffers
  • Line Drivers
  • HVAC Valve and LED Dot Matrix
