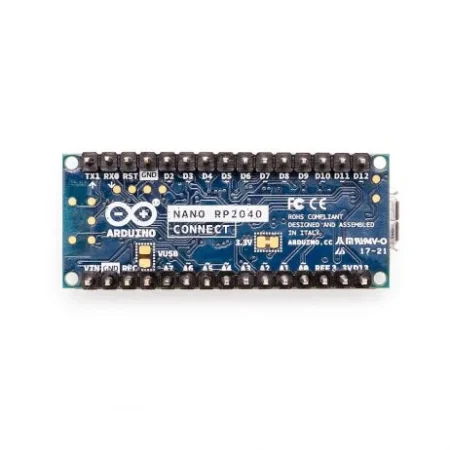

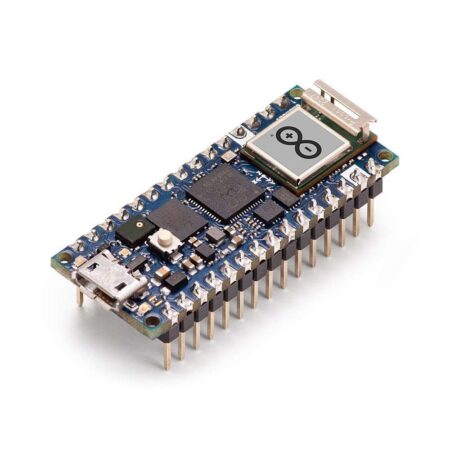

Out of stock Arduino Nano RP2040 Connect with Header

Arduino Nano RP2040 Connect with Header

1,400.00 EGP

133MHz 32bit Dual Core Arm Cortex-M0 Processor
264kB on-chip SRAM
U-Blox Nina W102 WiFi/Bluetooth Module
240MHz 32bit Dual Core Xtensa LX6
520kB on-chip SRAM

SKU AR_nano RP2040 SKU SYS x3493 Availability Out of stock

Quantities are confirmed after reviewing your order. Orders are normally prepared and shipped within 3–5 business days. Online availability does not necessarily mean the product is currently available at the branch. تأكيد الكميات بيتم بعد مراجعة الأوردر، وتجهيز وشحن الطلب بيستغرق عادة من 3 إلى 5 أيام عمل. توافر المنتج على الموقع لا يعني بالضرورة توافره داخل الفرع، لذلك اعمل الأوردر مسبقًا لتأكيد الكمية وتجهيزه.

You are already subscribed We will notify you when this product is available again. أنت مشترك بالفعل، وسنرسل لك تنبيهًا عند توافر المنتج.

Fast shipping Delivery across Egypt

Flexible payment Cash and online options

Quantity confirmation Confirmed after order review

Technical support Help choosing compatible parts

Description

While the news-breaking launch of the Raspberry Pi Pico is still fresh in our minds, here is another launch of a tiny but powerful development board in the world of microcontroller boards on the footprint of Raspberry Pi Pico from Arduino officials.

Arduino named it “Arduino Nano RP2040 Connect” a newly launched Microcontroller board welcoming the Raspberry Pi’s RP2040chip on which NANO connect has been built. The Arduino Nano RP2040 Connect shares a similar form factor to the Raspberry Pi Pico, but it includes extra functionality, chiefly WiFi and Bluetooth along with a 9-axis IMU sensor and microphone.

Arduino also broke the news that they will be porting the Arduino IDE for use with the RP2040 chip. This is welcome news for C/C developers and embedded hobbyists alike.

Features and Specifications:

Raspberry Pi RP2040 Microcontroller:

133MHz 32bit Dual Core Arm Cortex-M0
264kB on-chip SRAM
Direct Memory Access (DMA) controller
Support for up to 16MB of off-chip Flash memory via dedicated QSPI bus
USB 1.1 controller and PHY, with host and device support
8 PIO state machines
Programmable IO (PIO) for extended peripheral support
4 channel ADC with internal temperature sensor, 0.5 MSa/s, 12-bit conversion
SWD Debugging
2 on-chip PLLs to generate USB and core clock
40nm process node
Multiple low power mode support
USB 1.1 Host/Device
Internal Voltage Regulator to supply the core voltage
Advanced High-performance Bus (AHB)/Advanced Peripheral Bus (APB)

U-blox® Nina W102 WiFi/Bluetooth Module:

240MHz 32bit Dual Core Xtensa LX6
520kB on-chip SRAM
448 Kbyte ROM for booting and core functions
16 Mbit FLASH for code storage including hardware encryption to protect programs
and data
1 kbit EFUSE (non-erasable memory) for MAC addresses, module configuration,
Flash-Encryption, and Chip-ID
IEEE 802.11b/g/n single-band 2.4 GHz WiFi operation
Bluetooth 4.2
Integrated Planar Inverted-F Antenna (PIFA)
4x 12-bit ADC
3x I2C, SDIO, CAN, QSPI

Memory:

AT25SF128A 16MB NOR Flash
QSPI data transfer rate up to 532Mbps
100K program/erase cycles

Package Includes:

1 x Arduino Nano RP2040 Connect with Header

ARDUINO NANO RP2040 CONNECT DATASHEET
