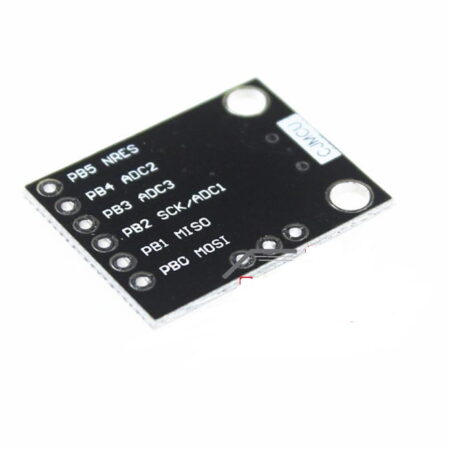

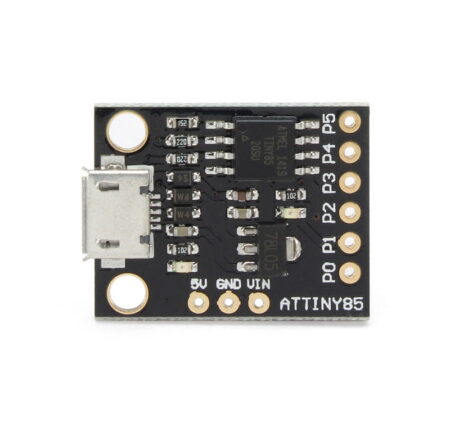

Digispark ATTINY85 Mini USB Development Board

Although small in size, great in capabilities. The Digispark ATTINY85 Mini USB Development Board is similar to the Arduino but cheaper and smaller (of course a bit less powerful). With a whole host of shields to extend its functionality and the ability to use the familiar Arduino IDE, this board is a great way to jump into microcontroller electronics.

Complete USB Development Board Cheap Enough to Leave in a Project. If you have never heard of the Digispark ATtiny board before, it may take you more than a moment to understand its full power and potential. So read this carefully:

Firstly, it’s a 20MHz, AVR 8-bit microcontroller with 8 KB flash, 512 bytes of RAM

You get up to 5 GPIOs, 4 ADCs, 2 PWMs, 1 SPI, and 1 I2C

Secondly, it’s fully compatible with Arduino

Thirdly, it can be directly programmed via USB without needing any other programmer!

And finally, it is available at a cheap price!!

The Digispark is shipped fully assembled except for the two included and easy to solder headers.

Note: The Board is available in Black and Blue color we will ship it Randomly

Features :

1. High Performance, Low Power AVR® 8-Bit Microcontroller
2. Non-volatile Program and Data Memories
3. 8K Bytes of In-System Programmable Program Memory Flash
4. Endurance: 10,000 Write/Erase Cycles
5. 512 Bytes In-System Programmable EEPROM
6. 512 Bytes Internal SRAM
7. Peripheral Features
8. Two High-Frequency PWM Outputs with Separate Output Compare Registers
9. USI – Universal Serial Interface (12C, SPI, 1-wire) with Start Condition Detector
10. 10-bit ADC
11. 4 Single Ended Channels
12. Two Differential ADC Channel Pairs with Programmable Gain (1x, 20x)
13. Speed Grade
14. 0 – 10 MHz @ 2.7 – 5.5V, 0 – 20 MHz @ 4.5 – 5.5V
15. Industrial Temperature Range
16. Low Power Consumption
17. Active Mode:1 MHz, 1.8V: 300 µA

Package Includes :

1 x Digispark ATTINY85 Mini USB Development Board

1 x Berg Pin
