Features
Simple DIY hand electric drill The small hand drill, is their own DIY, the need to assembly, from already wiring, power supply: 12 v1a. Used to drill plastic, organic glass, wood veneers
Used for 2.3mm motor shaft.
Excellent workmanship
0.5-3.2mm drill collet
Go with twist drill as a mini hand drill for ABS board, aluminum sheet, paperboard drilling
Specifications
Collet Material: Brass
Drill Collet Size: 0.5mm, 1.0mm, 1.2mm, 1.5mm,1.8mm,2.0mm, 2.4mm, 3.0mm,3.2mm
Diameter of backshaft (match the motor shaft): 2.3mm
Motor Specifications:
Power: 3-12 V DC
Diameter: 2.8CM
Length: 5.2CM
Weight:70g
Rated wattage: 20W
Rated torque: 600G.CM
Brass Chuck Hole Dia 2.3mm
Apply to Twist drill bits:0.5 0.8 1.0 1.2 1.5 1.8 2.0 2.2 2.5 3.0mm

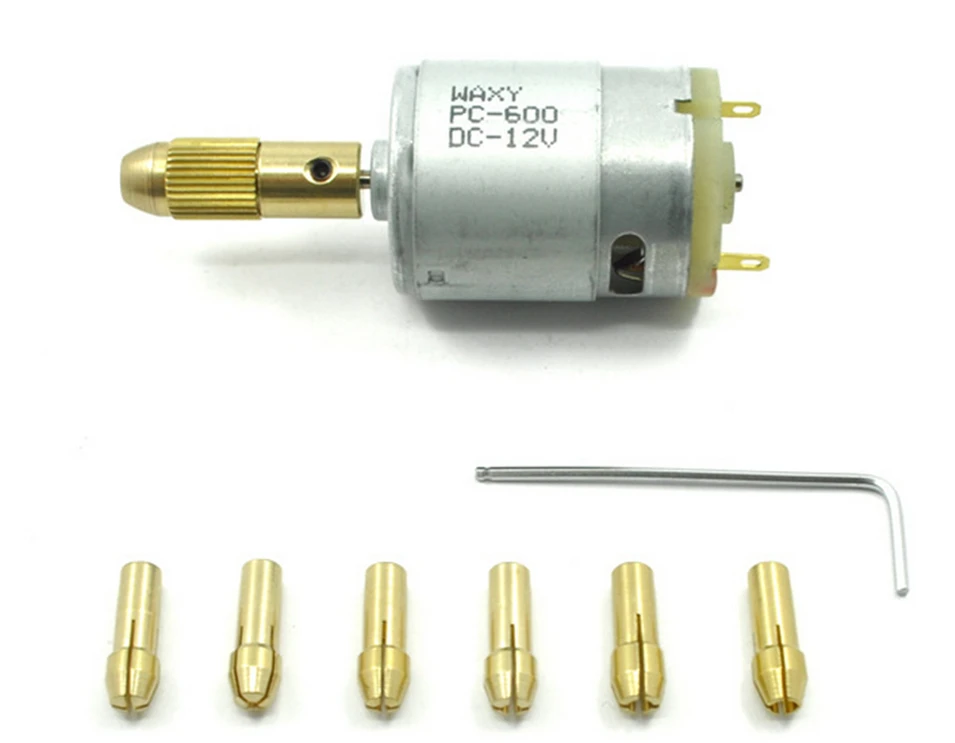

Package include

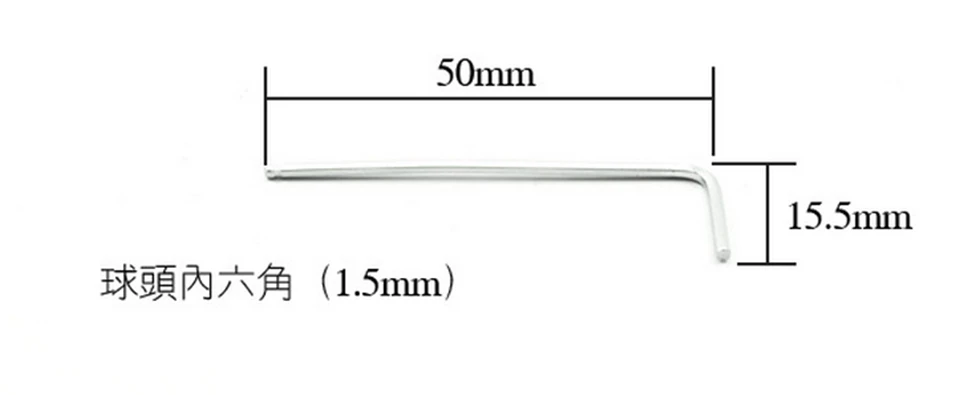

1X L wrench
1X Copper Cap
1X L wrench
1X DC 12V Motor
2Xscrews
1X 0.5mm drill collet
1X 1.0mm drill collet
1X 1.5mm drill collet
1X 2.0mm drill collet
1X 2.5mm drill collet
1X 3.0mm drill collet
Used for 2.3mm motor shaft.
Excellent workmanship
0.5-3.2mm drill collet
Go with twist drill as a mini hand drill for ABS board, aluminum sheet, paperboard drilling
Specifications
Collet Material: Brass
Drill Collet Size: 0.5mm, 1.0mm, 1.2mm, 1.5mm,1.8mm,2.0mm, 2.4mm, 3.0mm,3.2mm
Diameter of backshaft (match the motor shaft): 2.3mm
Motor Specifications:
Power: 3-12 V DC
Diameter: 2.8CM
Length: 5.2CM
Weight:70g
Rated wattage: 20W
Rated torque: 600G.CM
Brass Chuck Hole Dia 2.3mm
Apply to Twist drill bits:0.5 0.8 1.0 1.2 1.5 1.8 2.0 2.2 2.5 3.0mm
Package include
1X L wrench
1X Copper Cap
1X L wrench
1X DC 12V Motor
2Xscrews
1X 0.5mm drill collet
1X 1.0mm drill collet
1X 1.5mm drill collet
1X 2.0mm drill collet
1X 2.5mm drill collet
1X 3.0mm drill collet
